GERBER Trail Camera 4G MMS / Email
ALL Networks
Item Code: GTC4AU
Compliment your order with the below

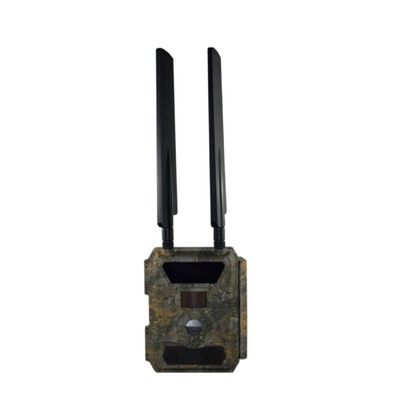

Gerber 4G all aU networks Trail Camera MMS/Email
SKU: GTC4AU
The Gerber 4G All AU Networks Trail Camera MMS/Email is a perfectly durable day/night camera for monitoring of rural properties, stock, game, wildlife, even possums on the roof!! The Gerber 4G All AU Networks Trail Camera MMS/Email notifies you via MMS/email and stores on SD Card 8MB-32GB*
With a built-in 2.0” LCD colour screen and a wide-angle 100° lens, the infrared sensor will detect movement up to 20m away from the camera. A 0.4 second trigger speed start recording at 24MP/1080P @ 30FPS. Video length 10sec programmable using SD Card 8MB-32GB* Standby time up to 6 months with 12xAA Alkaline Batteries**
With 4G capability on all Australian Networks there are numerous possibilities for the Gerber 4G Trail Camera, it has even been used to film motor racing!!
*SD Card (8MB-32GB) not included **Batteries not included
(GTC4AU)
Features:
- NOW ON ALL AUSTRALIAN NETWORKS
- With 4G Capability
- 24MP / 1080P @ 30FPS
- 0.4 second trigger speed
- Standby time up to 6 months with 12x AA Alkaline Batteries
- Easy to use Function buttons
- Built-in 2.0" LCD colour srceen
- Adjustable perimeter sensitivity
- Programmable timer to capture picture/ videos at pre-set intervals
- Stamp of user label, date, time, temperature and moon phase on picture
- adjustable delay between captures
- Support standard 10-12v dolar panel
- Cystal clear day and night image quality
- Multi-shot pictures (up to 5 per trigger)
- TV out put to help you review phot / videos 59 pcs IR LEDs 940nm Black no flash range up to 20m
- Colour pictures during day and black & white at night
|
Image Sensor |
5 Mega Pixels Colour CMOS |
|
Effective Pixels |
2560x1920 |
|
Day/Night Mode |
Yes |
|
IR range |
20m |
|
IR Flash |
59IR LED 940nm Black No Glow |
|
Memory |
SD Card (4GB – 32GB) |
|
Operating keys |
7 |
|
Lens |
F=3.0; FOV=100°; Auto IR-Cut-Remove (at night) |
|
PIR Angle |
100° |
|
LCD Screen |
2” TFT, RGB, 262k |
|
PIR distance |
20m (65feet) |
|
Picture size |
5MP/8MP/12MP = 2560x1920/3264x2448/4032x3024 |
|
Picture Format |
JPEG |
|
Video resolution |
FHD (1920x1080), HD (1280x720), WVGA(848x480) |
|
Video Format |
AVI |
|
Video Length |
05-10 sec. programmable for wireless transmission; 05-59 sec. programmable for no wireless transmission; |
|
Picture size for wireless transmission |
8MP / 12MP / 24MP |
|
Images per Trigger |
1-5 |
|
Trigger Time |
0.4s |
|
Trigger Interval |
4s-7s |
|
Camera + Video |
Yes |
|
Device Serial No. |
Yes |
|
Time Lapse |
Yes |
|
SD Card cycle |
ON/OFF |
|
Operation Power |
Battery: 9V; DC: 12V |
|
Battery Type |
12AA |
|
External DC |
12V |
|
Stand-by Current |
0.135mA |
|
Stand-by Time |
5~8 months (6×AA~12×AA) |
|
Auto Power Off |
In Test mode, camera will automatically power off in 3 mins if there is no keypad touching. |
|
Wireless Module |
LTE Cat.4 module; 2G & 3G networks are also supported in some countries. |
|
Interface |
USB/SD Card/DC Port |
|
Mounting |
Strap; Tripod |
|
Operating Temperature |
-25°C to 60°C |
|
Storage temperature |
-30°C to 70°C |
|
Operation Humidity |
5%-90% |
|
Waterproof spec |
IP66 |
|
Dimensions |
148.25*117.37*78.25 mm |
|
Weight |
367 g |
|
Certification |
CE FCC RoHs |
Set Up Settings:
Any SIM that uses the Telstra network will auto match when the camera is turned on.
(eg, Telstra, ALDI Mobile, Amaysim, Belong, Boost, Dodo, Lycamobile, MATE, numobile, Pennytel, Tengerine Telecom, TeleChoice, Woolworths Mobile) [This list is current as at January 2020]
MANUAL MMS Setup:
MMSC: http://mmsc.telstra.com:8002
Proxy: 10.1.1.180
Port: 80
APN: telstra.mms
MANUAL 4G Internet Setup:
APN: telstra.wap
Optus MMS text is now compatible:
MMS Setup:
MMSC: http://mmsc.optus.com.au:8002/
Proxy: 61.88.190.10
Port: 8070
APN: mms
4G Internet Setup (varies based on plan and provider / trial and error):
APN:
Option 1: connect
Option 2: yesinternet
Option 3: preconnect
Option 4: connectme
Vodafone Setup:
MMS Setup:
MMSC: http://pxt.vodafone.net.au/pxtsend
Proxy: 10.202.2.60
Port: 8080
APN: live.vodafone.com
4G Internet Setup:
live.vodafone.com
***Please note that Vodafone does not use the HTTPS server, only HTTP
| SKU | GTC4AU |
| Barcode # | 9323568006682 |
| Brand | Gerber |
| Shipping Weight | 0.7700kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.110m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.003003000m3 |
| Unit Of Measure | 1 |
