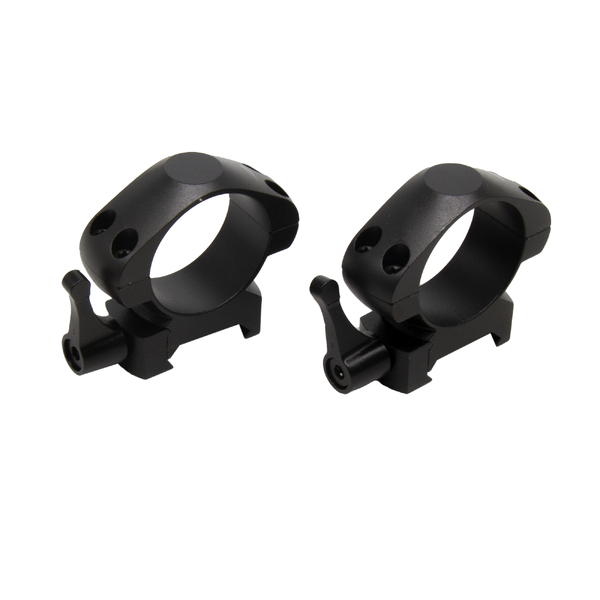

DINGO Gear Steel Ring QR Pair 30mm Medium Quick Release for Picatinny and Weaver Rails

DINGO Gear has a complete assortment of high quality steel mounting rings for riflescopes with 4 screws (Double Lock Down). They are available in three different heights (low – medium – high). These rings are available in a suitability for Weaver / Picatinny Rail or Airgun / .22 Rail and they are available in both 30mm or 1″ diameter.

Packaged as a set of two rings with double screws and a solid retention 15.88mm, which provides a solid grip on the scope tube

Model	Diameter	Profile	Saddle Height
DG1800	1” (25.4mm)	Low	17.1mm
DG1801	1” (25.4mm)	Medium	21.3mm
DG1802	1” (25.4mm)	High	27.1mm

DG1803	30mm	Low	19.4mm
DG1804	30mm	Medium	23.6mm
DG1805	30mm	High	29.4mm

DG1806	1” (25.4mm)	Low	17.1mm
DG1807	1” (25.4mm)	Medium	21.3mm
DG1808	1” (25.4mm)	High	27.1mm

DG1809	30mm	Low	19.4mm
DG1810	30mm	Medium	23.6mm
DG1811	30mm	High	29.4mm

DG1812	1” (25.4mm)	Low	19.45mm
DG1813	1” (25.4mm)	Medium	22.05mm
DG1814	1” (25.4mm)	High	25.45mm

DG1815	30mm	Low	21.75mm
DG1816	30mm	Medium	24.75mm
DG1817	30mm	High	27.75mm

(DG1810)

Durable and reliable
Quick Release
Constructed from solid and durable heat-treated 12L14 Steel
Matte Black Finish
Easy to install
Includes Torx screws and Torx driver included

Model: DG1810
Material: Steel
Ring Diameter (mm): 33mm
Profile: Medium
Saddle Height: 23.6mm
Width (mm): 15.88mm
Screws per Ring: 4
See-Through: No
